Single Coiled Seals RE - 05 Series
Single Coiled Seals RE - 05 Series Details
RANGE OF OPERATION
RE - 05, Unbalanced Seal
| Temperature | Cryogenics to 200° C |
| Pressure | Vacuum to 150 psi |
| Speed | Up to 6500 rpm |
| Size | 3/4" to 6" |

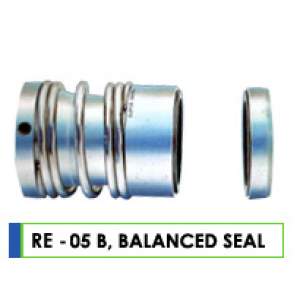

RE - 05 B, Balanced Seal
| Temperature | Cryogenics to 200° C |
| Pressure | Vacuum to 750 psi |
| Speed | Up to 6500 rpm |
| Size | 3/4" to 6" |
Single coiled seals are compact in design which ensure efficient handling of liquids containing solids like slurries, sludge, sewage, viscous and abrasive materials. Both the faces of such seals are designed to take care of solid particles in the liquid, which can otherwise damage the faces and contaminate the process.
MAIN FEATURES
Single Coiled seals are designed for non-clogging and self cleaning applications when handling contaminated liquids.
This design helps them handle considerable axial play of shafts during running/Performing. The compactness of single-coiled seals ensures ease of installation and provides trouble-free service with literally no maintenance..
